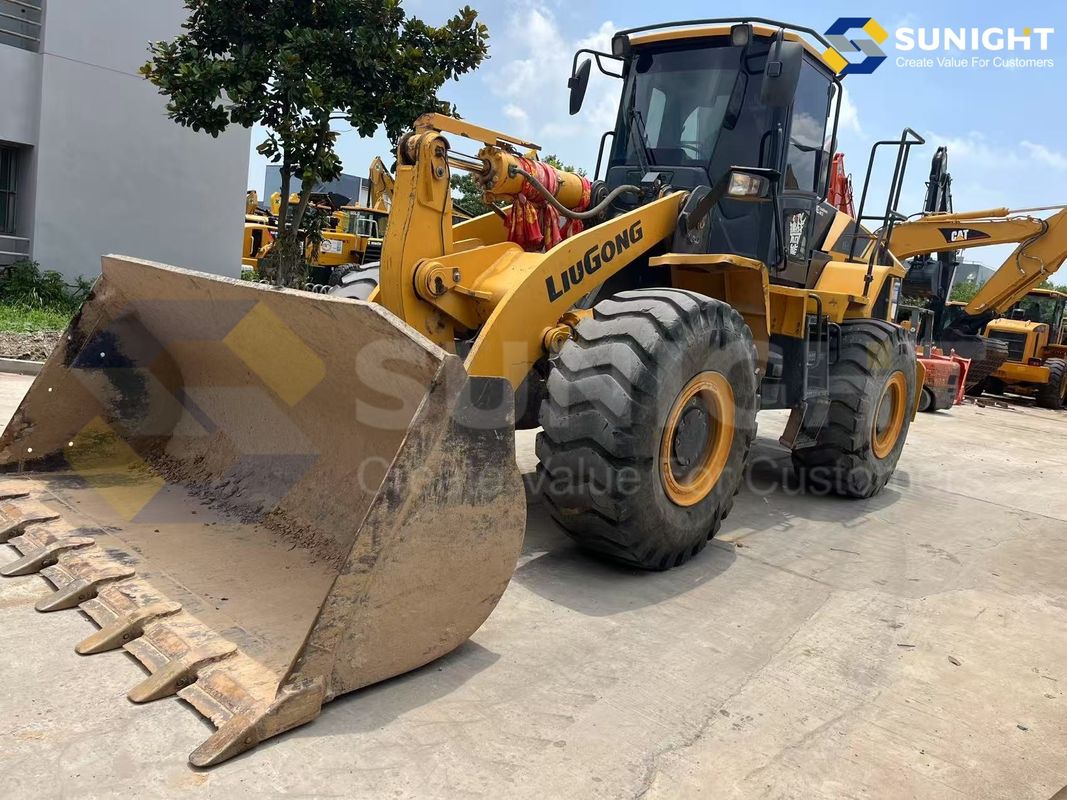

The LiuGong 856H is a 5.5-ton class wheel loader designed for heavy-duty applications in construction, mining, quarrying, and material handling. It is known for its power, efficiency, and durability, making it a popular choice in emerging markets and demanding work environments.
LiuGong 856H Specifications & Features
1. Engine & Performance
Engine Model: Cummins QSB6.7 (Tier 3 / Stage IIIA compliant)
Power Output: 162 kW (217 HP) @ 2,200 rpm
Torque: 850 Nm @ 1,500 rpm
Fuel Tank Capacity: 260 L
2. Operating Parameters
Operating Weight: 17,000 kg (approx.)
Bucket Capacity: 2.7 – 3.2 m³ (varies with material density)
Max. Breakout Force: ≥ 170 kN
Max. Tipping Load: ≥ 10,000 kg
Travel Speed (F/R): 0–38 km/h (forward), 0–20 km/h (reverse)
3. Transmission & Drivetrain
Transmission: ZF 4WG208 (4-speed fully automatic)
Axles: Heavy-duty LiuGong planetary axles with limited-slip differential
Drive Type: 4WD
4. Hydraulic System
Hydraulic Pump: Load-sensing variable displacement pump
System Pressure: 21 MPa
Bucket Lift Time (Full): ≤ 6.5 sec
Bucket Dump Time: ≤ 3.5 sec
5. Dimensions & Tires
Length (w/ bucket): ~8,500 mm
Width: ~2,980 mm
Height: ~3,450 mm
Wheelbase: 3,300 mm
Tire Size: 23.5R25 (Standard)
6. Cab & Operator Comfort
ROPS/FOPS-certified cab for safety
Air conditioning & heating
Low noise level (< 78 dB)
Adjustable seat & ergonomic controls
Advantages of LiuGong 856H
✅ Strong Powertrain – Cummins engine + ZF transmission for reliability.
✅ High Load Capacity – Suitable for heavy material handling.
✅ Fuel Efficient – Optimized hydraulics reduce fuel consumption.
✅ Easy Maintenance – Centralized lubrication & accessible service points.
✅ Robust Structure – Reinforced frame for long-term durability.
Typical Applications
Mining & Quarrying (loading blasted rock, gravel)
Construction (moving soil, sand, aggregates)
Port & Logistics (handling bulk materials)
Road Building (loading trucks with asphalt or base materials)
Competitors Comparison
Model LiuGong 856H XCMG LW500FN SDLG L958H Volvo L90H
Engine Cummins QSB6.7 Weichai WP10 Deutz TCD7.1 Volvo D6J
Power 217 HP 220 HP 210 HP 224 HP
Bucket (m³) 2.7–3.2 3.0 3.0 3.0–4.5
Transmission ZF Auto Manual/Auto ZF Auto Volvo Auto
Price (USD) ~$150K–180K ~$140K–170K ~$130K–160K ~$250K+
Price & Availability
New LiuGong 856H Price: $150,000–180,000 (varies by region & configuration)
Used Price (5 yrs old): $80,000–120,000
Global Availability: Sold in Africa, Asia, Latin America, Middle East
Final Verdict
The LiuGong 856H is a cost-effective, rugged wheel loader ideal for medium to heavy-duty operations. It competes well against brands like XCMG, SDLG, and Lovol but is priced lower than premium brands (Volvo, Cat, Komatsu).
